A write-up of the Unchained challenge from the Insomnihack CTF, which takes place every year at the Swiss Tech Center at EPFL.
After 11 hours of CTF at the Swiss Tech Center, it’s 5:30 AM, and it’s time to write it down before I forget :)
Note that this write-up is absolutely not the most optimized way to solve the problem (I spent nearly 6 hours on it!) but I hope that my reasoning will thus seem more attainable to other beginners who haven’t done many CTFs yet!
The Challenge
The subject, this simple Python server. An instance is online (with an unknown MAIN_KEY and app.secret_key).
🚩 Our goal? Obtain the environment variable os.environ['INS'] (returned by the /secret endpoint).
from base64 import b64encode, b64decode
from Crypto.Cipher import AES
from Crypto.Util.Padding import pad, unpad
from random import randint
import uuid
import os
from flask import Flask, request, session, redirect, url_for
import re
from waitress import serve
app = Flask(__name__)
app.secret_key = ''.join(["{}".format(randint(0, 9)) for num in range(0, 6)])
MAIN_KEY = b"FAKE_KEY"
def gen_userid():
return str(uuid.uuid4())
def encrypt(data,MAIN_KEY):
cipher = AES.new(MAIN_KEY, AES.MODE_ECB)
cipher_text_bytes = cipher.encrypt(pad(data, 16,'pkcs7'))
cipher_text_b64 = b64encode(cipher_text_bytes)
cipher_text = cipher_text_b64.decode('ascii')
return cipher_text
def decrypt(MAIN_KEY, cipher_text):
rem0ve_b64 = b64decode(cipher_text)
cipher = AES.new(MAIN_KEY, AES.MODE_ECB)
decrypted_bytes = cipher.decrypt(rem0ve_b64)
decrypted_data = unpad(decrypted_bytes, 16, 'pkcs7').decode('ascii')
return decrypted_data
@app.route("/")
def welcome():
return '''
<div style="text-align: center;">
<h1 style="font-size: 3em; color: #333;">UNDER CONSTRUCTION</h1>
<img src="/static/img/page-under-construction.jpg" alt="Under Construction" style="width:400px; display: block; margin: 0 auto;">
</div>
<!-- HACKERS HAVE NO CHANCE THIS TIME!!! -->
'''
@app.route("/status")
def status():
if 'status' in session:
plain_text = decrypt(MAIN_KEY, session["status"])
return f'Logged in as {plain_text}'
return 'You are not logged in'
@app.route("/secret")
def get_secret():
plain_text = decrypt(MAIN_KEY, session["status"])
role = plain_text.split("::")[2]
if role == 'admin':
return os.environ['INS']
return f'You are a just a {role}. Only admins can see the secret!'
@app.route('/login', methods=['GET', 'POST'])
def login():
if request.method == 'POST':
user_id = gen_userid()
user = re.sub(r'\W+', '', request.form['username'])
status_data = user_id + \
"::" + user + \
"::" + "guest"
cipher_text = encrypt(data=status_data.encode('ascii'),MAIN_KEY=MAIN_KEY)
session['status'] = cipher_text
return redirect(url_for('status'))
return '''
<form method="post">
<p>
<label for="username">Username:</label>
<input type="text" id="username" name="username">
</p>
<p>
<input type="submit" value="Login">
</p>
<p> * Note to myself: Password field TBD </p>
</form>
'''
@app.route('/logout')
def logout():
session.pop('status', None)
return redirect(url_for('status'))
if __name__=="__main__":
serve(app, host='0.0.0.0', port=80)However, as seen in /secret, the user’s role is verified and must be equal to admin.
You need to log in with /login by submitting a username, then the session will be stored in the browser as ${random_user_id}::${username}::{role}, all encrypted with the MAIN_KEY!
(random_user_id is a uuid, so something like e3482f4e-7970-4da5-8626-15578b78e7a4).
Attempt #1: Separator Injection
We first tried to perform the equivalent of an SQL injection, adding :: in the username. Indeed, submitting simon::admin, if accepted by the server, would have resulted in e3482f4e-7970-4da5-8626-15578b78e7a4::simon::admin::guest and in the /secret endpoint, .split('::')[2] would have been equal to admin!
Unfortunately, there’s a really annoying regex in /login that permanently removes this possibility by only allowing letters :(
Attempt #2: Retrieve the MAIN_KEY
After spending some time trying to inject something into the /login form, we are convinced we’re barking up the wrong tree. We turn to the encrypt function. It uses AES in ECB mode (which I had no clue about until then). We wonder if a flaw has intentionally been left in this encrypt function, and if that flaw should allow us to retrieve the MAIN_KEY.
And if so… for what purpose? No idea for the moment.
We then look at the session cookies generated by Flask and find this:
session: "eyJzdGF0dXMiOiJ5Wm1DRExhZWVkSkdkL3E5Qzd2bEM1NW1JQTNKYzJXZXF1aGV2ZXk5R1B6dmh0Y3JlMEVkVmZjTHFFMGliNG9QYjdnQ0l4TjZnY05SbzFWZEhjK2lmdz09In0.Z9UHWA.k4gClLZ8e7qXJdkgXSjA4mol08Q"Clearly, it looks like a JWT (json web token).

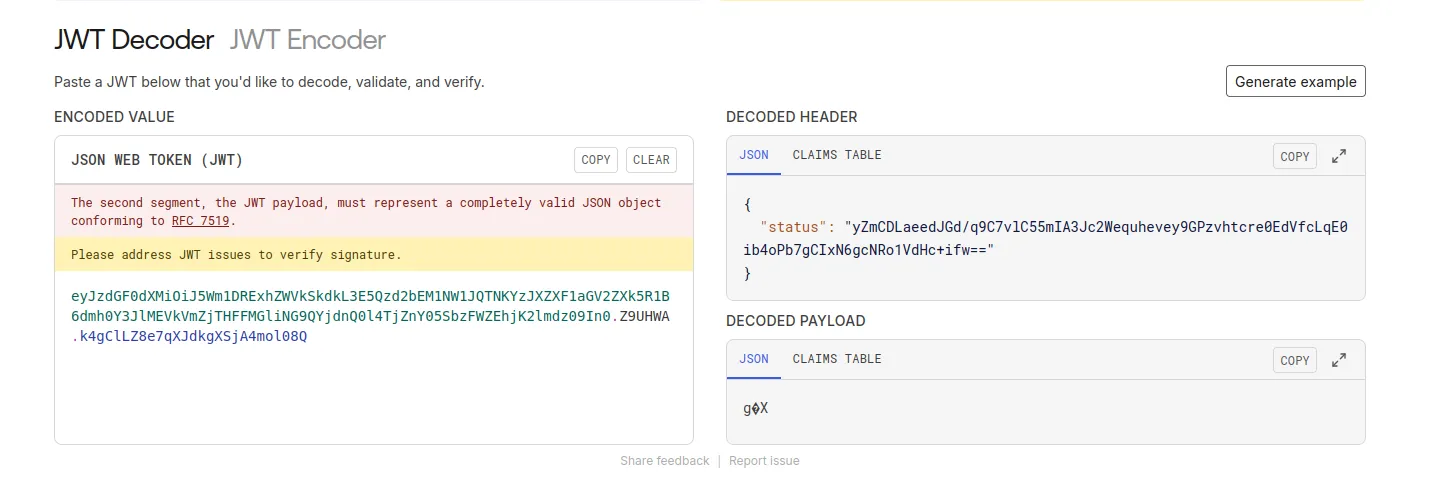

When inserted into https://jwt.io, we get the following result:
{
"status": "yZmCDLaeedJGd/q9C7vlC55mIA3Jc2Wequhevey9GPzvhtcre0EdVfcLqE0ib4oPb7gCIxN6gcNRo1VdHc+ifw=="
}the payload seems to be… in the JWT headers? I’ve never seen that before, but at least we are able to retrieve the encrypted result from the encrypt function!
In summary, we are able to get the encrypted version of a lot of entries (but not all, because the server adds a random ID in front, and ::guest at the end). That’s already something!
Cool Attempt: Using Block Size (1)
After researching more on ECB, we realize that its operation is as follows:
Each 16-byte block is encrypted independently of the others. That’s useful for us! We know that once we’ve obtained the encryption of ::admin, we could directly place it encrypted as-is into our cookie!
But… Can We Modify the Cookie?
And here’s the second (but smaller) problem: the cookie is signed with app.secret_key (which is randomly generated each time the server is launched).
Fortunately, the above code is given to us, and we see that it’s a 6-digit code: only 1,000,000 attempts (10**6) to find the right key!
For that, the attack needs to be fast enough (and especially, entirely local), and we must thank GioBonvi for his script ;)
By retrieving the JWT generated by the live Insomnihack instance, we can validate it through the script by specifying the key. We just need to test with all the keys, and it’s done! Unfortunately, I had the great idea of making a bash script that calls the Python script instead of looping directly in Python, which made me lose quite a bit of time!
from hashlib import sha1
from flask.sessions import session_json_serializer
from itsdangerous import URLSafeTimedSerializer, BadTimeSignature
from zlib import decompress
def readAndVerifyCookie(cookie, secret_key):
signer = URLSafeTimedSerializer(
secret_key, salt="cookie-session",
serializer=session_json_serializer,
signer_kwargs={"key_derivation": "hmac", "digest_method": sha1}
)
try:
session_data = signer.loads(cookie)
#print("The signature is correct!")
return session_data
except BadTimeSignature:
#print(f"The signature is not correct!")
return None
jwt = "eyJzdGF0dXMiOiJRamo2V3UrZGp0NVRVNXRwa3dqcXoyQmE2WjhRZFJ3ZTFrK2NhdUhtSXN1WjgzSkg5dUpPQVNMSkpnNnZad3FvTWJtNzR3a0VCeWo4Mi8vdzFJVUQ5Zz09In0.Z9SbRw.WS4VqAkE1dPnlUCG5iGAzEdZv2Y"
def check():
for i in range(1000000):
if i%100 == 0:
print(f"Tested until {i:06d} codes...")
if readAndVerifyCookie(jwt, f"{i:06d}") is not None:
print(f"Code found: {i:06d}")
exit(0)
check()

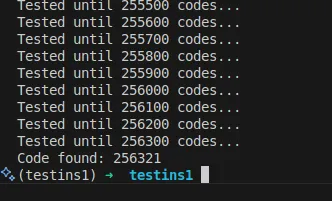

And there we go! We can now inject signed cookies!
We test with an unsigned (but still encrypted!) status payload, sign it, and set it as a cookie, and it works!
Next: Using Block Size (2)
Now that we can inject signed cookies… what payload to put?
We still don’t know how to encrypt id::me::admin to put it in the cookie. For that, we test logging into the live instance with the following values and then retrieve the cookies:
e3482f4e-7970-4da5-8626-15578b78e7a4::aaaaaaaaaaadmin::guest(so thatadmin::gueststarts a new 16-byte block)\xd7\xf8 \xd7\xb8\x92Y\xb7L\x8e\xea3',\t\xc0Q\x1c\x9e(jg~\x12\x15\xb2\x98\x87\x19\xc9,\xd1D\xf0\\\xd7\x11\xaa\x9f8t\xe3\x9a\x02\xe75\x81\xe4o\x04\xa9\xd5\x84@\x1c\xb1\x97\xa5\x98\xf2\xf8$\xb9\x12797d503d-7faa-4d35-b93f-e6e501cc60da::1234567891admin::guest(which thus gives the same ending)\xe1\xa6\x02M\x18\xeam\x14\x19K$\xf4^\xcd\x84M\x9e\xea\x8el\x12\xcf\x91B\xec\xa0\xca\xf5\xde3\x16\x08\xe1\x83m\xb7\xa6\x14\xfch\xee\x9c\xd9\x83\xe3\x85\x7flo\x04\xa9\xd5\x84@\x1c\xb1\x97\xa5\x98\xf2\xf8$\xb9\x12
And then… we test:
052599b1-d2af-461b-8210-151cb212c012::1234567891 admiz::guestand there, problem! The ending isn’t identical!\xc9j#\xcd\x1f\xb3\x94_\xa8\x8f\xf7\xddW\xe2\x07\xcc/\x93\x82\x95\x18L\xfb\xd4s=\xf2\x88\x8c-D\xac\x16\xcc\n\x1a&P\x06\x8b\x98\x8e\xa9\x86\x14\xb40\x89\xf5D0'\x15{\xa1\xcf%c\xe1\x12\x13\xed\xb2\xc2
Until now, we thought that ECB did some sort of XOR between the key and the plaintext block, but no, encoding 1234567890 and 1234567891 will be perfectly different (even at the beginning). We can only get a 16-byte block encrypted, but we can’t then slice it into smaller blocks.
So, we can’t get just the representation of admin alone!
The End and Resolution
After (a lot of) thinking, we come up with a solution!
- Encrypt
43ebe362-4558-45cc-b0e6-104b989cd8a3::admin::guestand then retrieve the 4th encrypted blockd8a3::admin::gue - Encrypt
e3482f4e-7970-4da5-8626-15578b78e7a4::aaaaaaaaaaadmin::guestand then retrieve the 3rd encrypted blocke7a4::aaaaaaaaaa - Replace the 3rd encrypted block of
43ebe362-4558-45cc-b0e6-104b989cd8a3::admin::guestwith the 3rd encrypted block ofe3482f4e-7970-4da5-8626-15578b78e7a4::aaaaaaaaaaadmin::guest - Then add the 4th block from the encryption of
43ebe362-4558-45cc-b0e6-104b989cd8a3::admin::guest!
This gives the following results:
43ebe362-4558-45cc-b0e6-104b989cd8a3::admin::guest- Then
43ebe362-4558-45cc-b0e6-104b989ce7a4::aaaaaaaaaa - Then
43ebe362-4558-45cc-b0e6-104b989ce7a4::aaaaaaaaaad8a3::admin::gue
And there we go! We successfully obtain admin in the 3rd position of the encryption, and we can put it in the signed cookie!
Who is “we”?
I didn’t do this alone, thanks to our team which includes Valerio, Laura, Martin, Adrien, baribal02, lynx8511, and zookafoob :)
